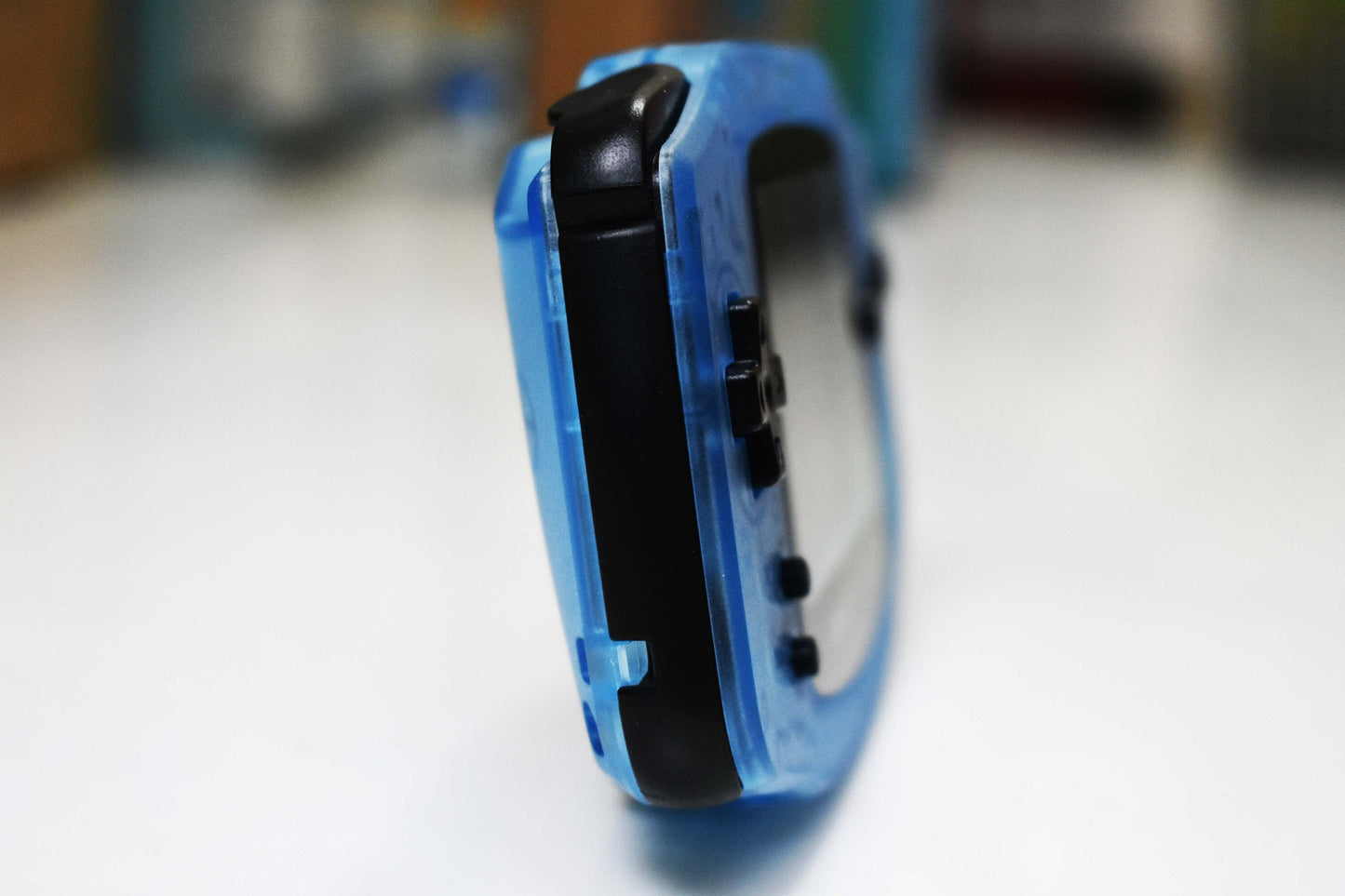

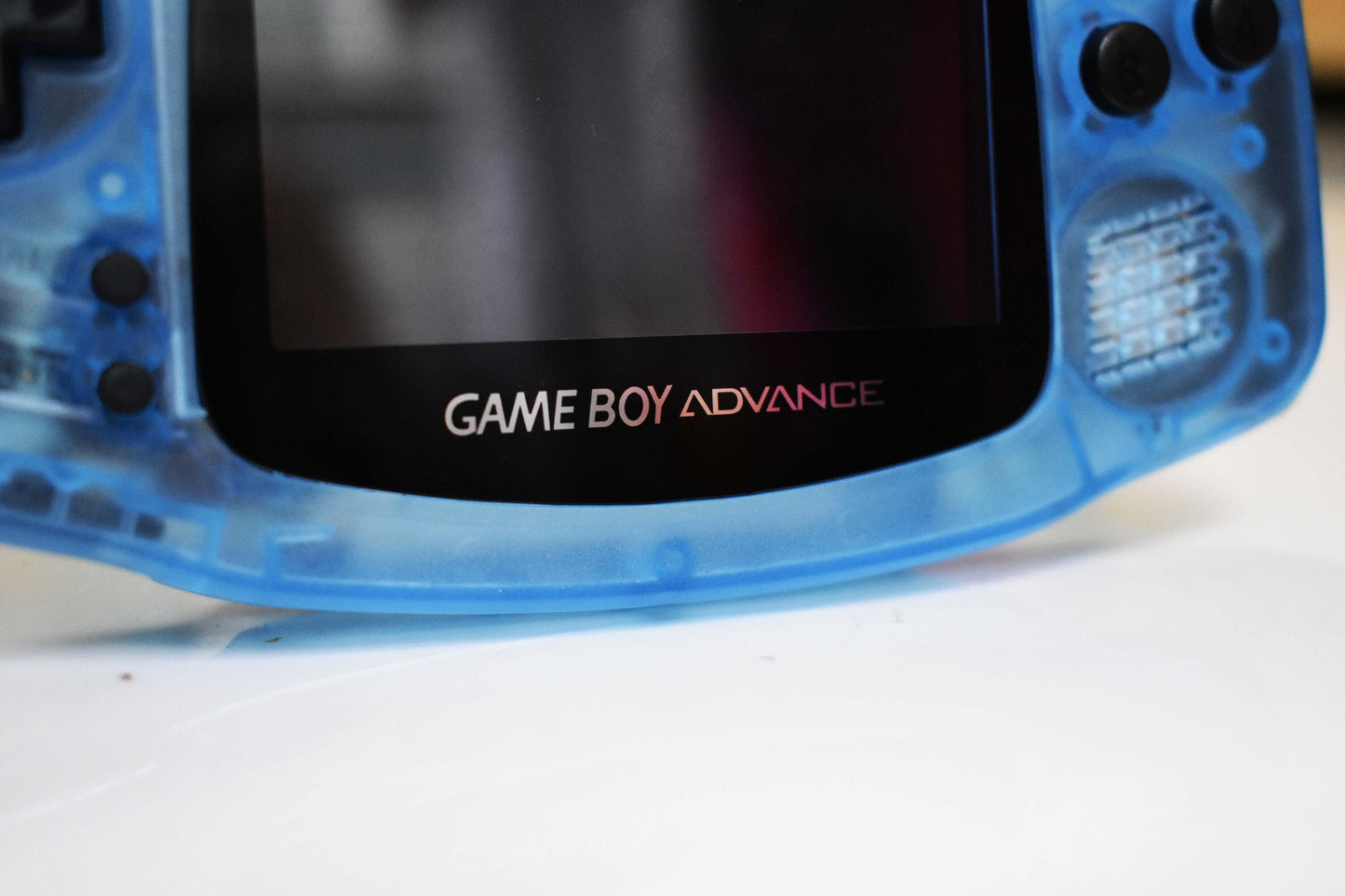

Extra Mods IPS Backlit LCD GBA Nintendo Game Boy Advance Clear Ice Blue



DESCRIPTION

1️⃣ IPS LCD Hispeedido manufacturer (3.2 inch)

   🔸️ "4 pixels in 1" compare to AGS101 LCD, it means it displays 4 times sharper than AGS101 LCD

   🔸️ Bigger than AGS101 LCD but still have proportional image

   🔸️ Multi levels of brightness (press on select + L or R button to change the brightness)

   🔸️ Wider viewing angle

   🔸️ Around 10+ hours playing with 1900mah AA battery (brightness level 5, no sound upgrade)



2️⃣ Extra mods and shipping:

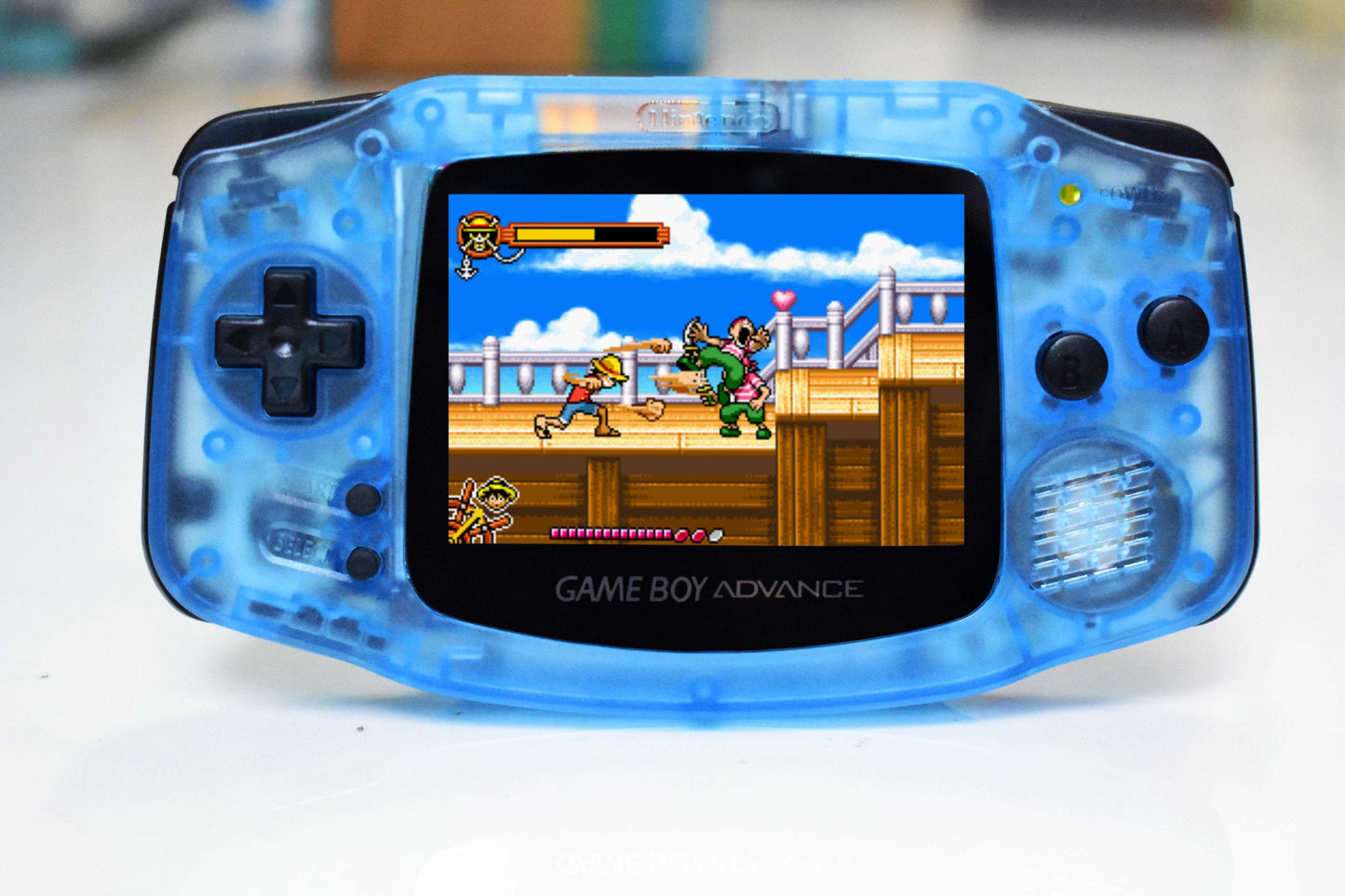

A default unit is the console with IPS LCD installed as you can see in the pictures. If you want any of these extra mods below, please pick them in the variations section.

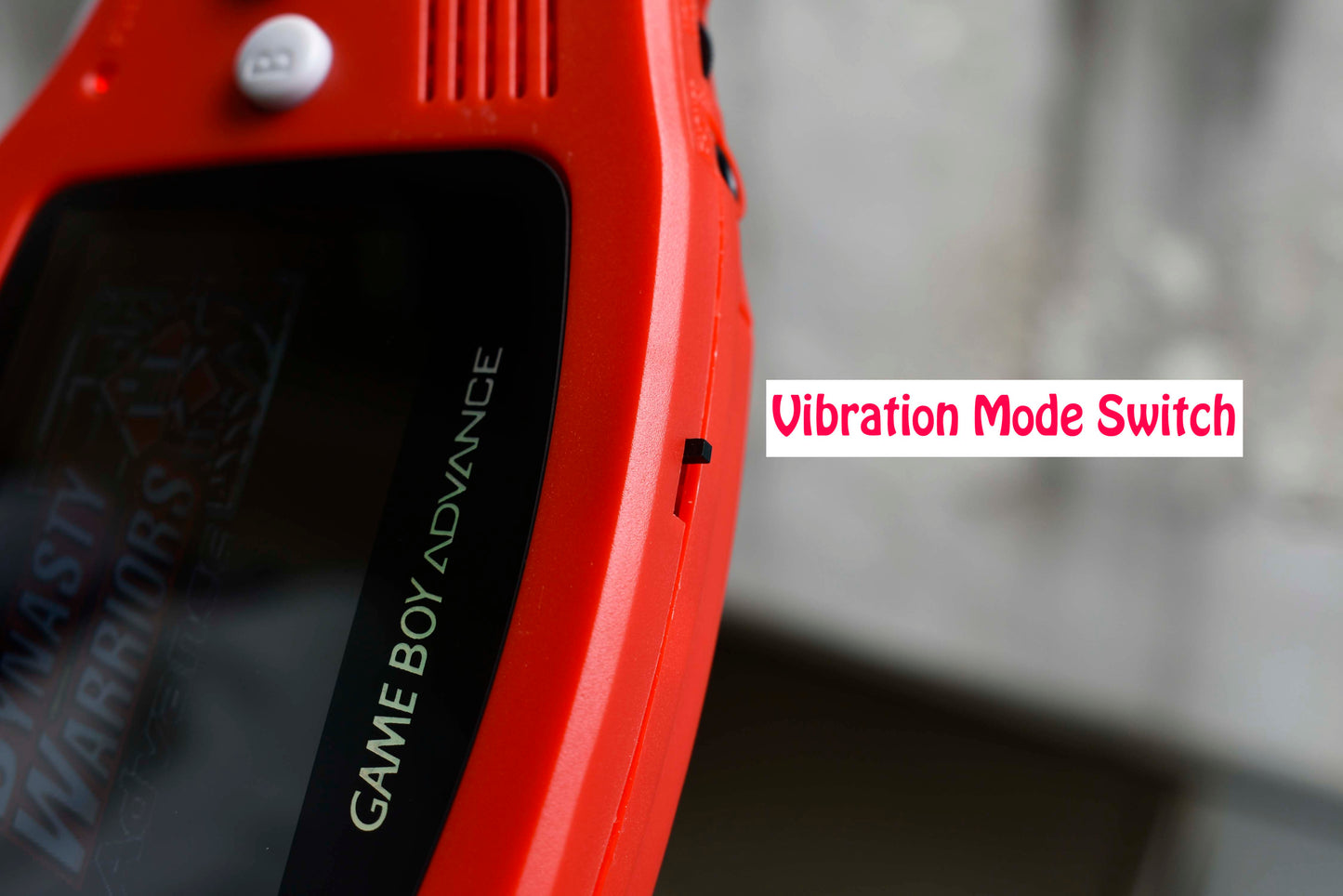

📳Vibrating mod : this is a modern feature that allows the GBA to vibrate whenever you press on A or B. With a built-in switch, you can turn the vibration mode on/off and change the vibrating key between A and B buttons (you can choose A or B button is the key for activating the vibrating depends on the game).

It is really interesting especially with shooter games, fighting games...

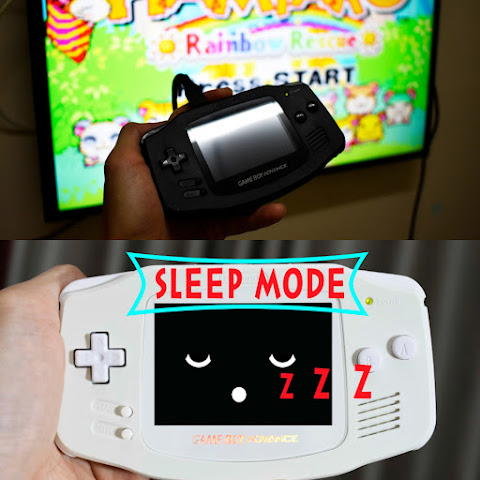

 💤 Sleep Mode mod: Sleep mode is a standby feature that allows the GBA to reserve power while still keeping the system on. This is helpful when you need to leave the device for a short period of time and then you can pick it up and play it from wherever you left it off without too much loss of power of the battery.

How it works:

📙Simply slide the sleep-mode switch, the device will turn to sleep mode.

💤When the system is in sleep mode:

📴The Screen is totally off

🔇The Sound from speaker is totally off.

⏸The game is still in progress but start button will be activated automatically to pause the game. Note that some games are not paused when start button is pressed, you will need to find another way to pause the game before putting it in sleep mode or just leave as it is in progress and shut the screen and sound off to save power.

📌Test power consumption with IPS LCD, Super Mario Bros 3, brightness level 5:

▶️While playing: 240mA

😴While in sleep mode: 100mA (save ~60%)

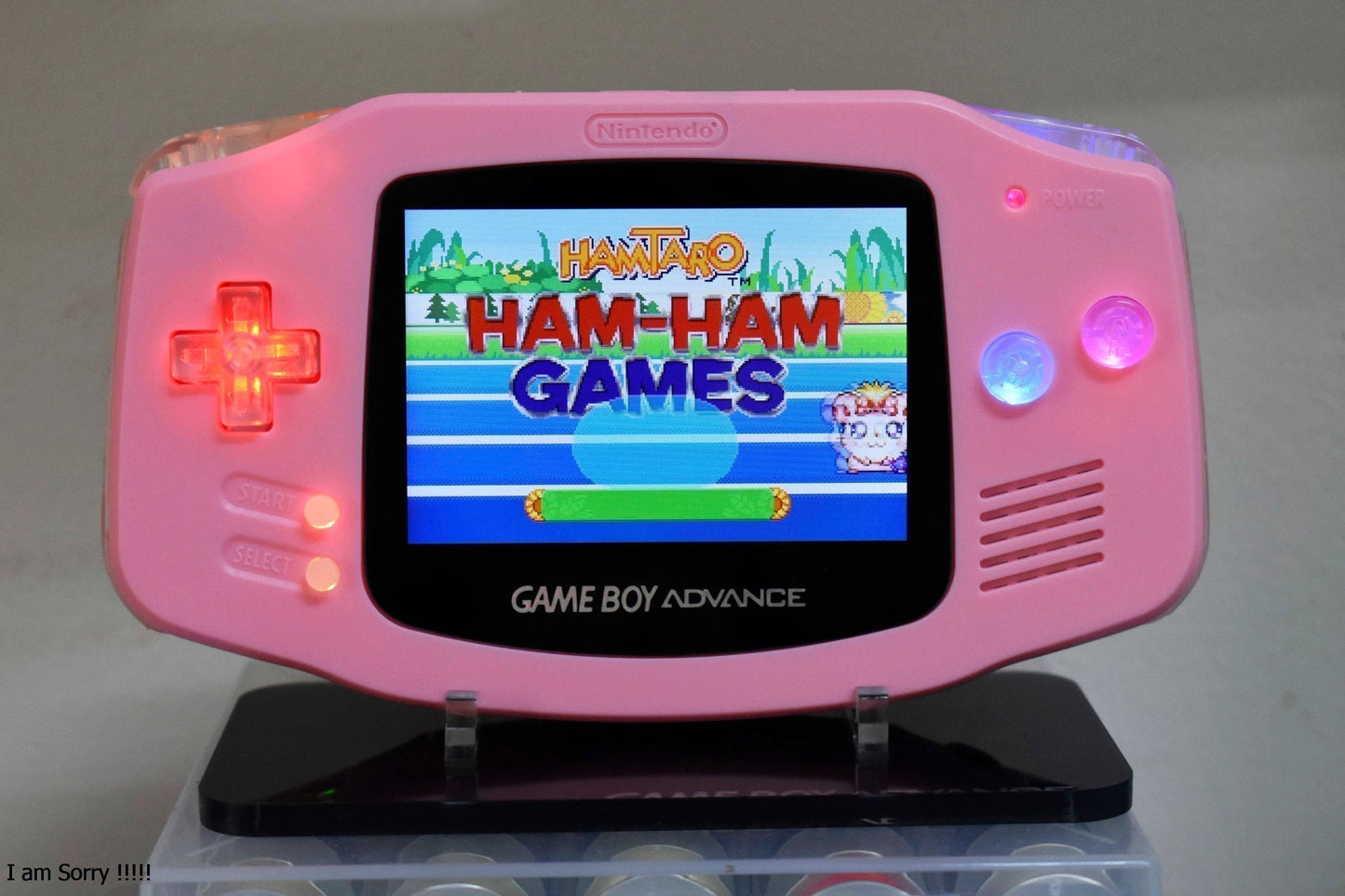

 🌟LEDs button mod : Lights up your Game Boy Advance with a Flexible RGB LED Cable which is installed inside the shell (this flex cable is also known as Retroglow). Pair with clear buttons to make your GBA shine!

Features:

Individual button color customization

18-25mA power draw with default settings, maximum measured draw 50mA at full brightness with white color

Hue, brightness, and saturation adjustment

3 color modes: Fixed color mode, Rainbow color mode and Fairy color mode

All the buttons: D-pad, A, B, Start, Select, L, R, Power switch will light up.

Installing this mod might cause small background noise but not serious and it will be covered by the music of the game.



  🔊 Louder sound: an amp board is installed to amplify the sound. Most of the GBA speakers in the market now are very quiet. This mod will improve the sound much better.

All the GBAs are applied dehum/dehiss kits to remove background noise no matter the GBA is added louder sound mod or not.

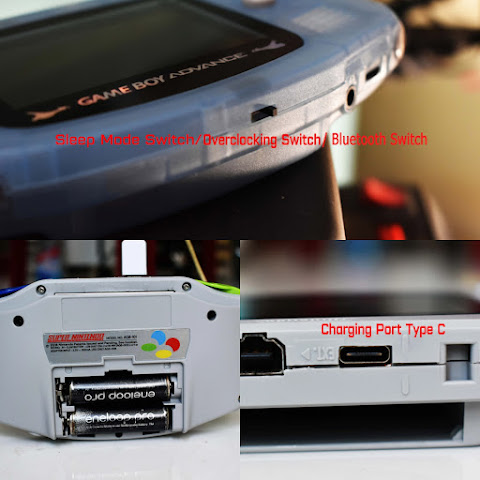

  ⏩️ OverClocking: Speed up/down the game. Hardware will be modified so that player can change the speed of the game to 3 levels via a switch which is installed nicely on the top right of the GBA (see picture). 3 speeds are 0.85x, 1x (normal speed) and 1.5x. This mod is for bypassing the long text (games like Pokemon) or slowing down the action moving on the fighting games.



  ⚠️ 0.85x and 1.5x work well with genuine game cartridges. Do not work stably with flashcart at 0.85x and 1.5x. There is a tip to make it work stably with flashcart and fake cartridges (I do not guaranty 100%), that is only change the speed when the game is paused. Still functioning with GBA Link Cable when both devices are at the same speed (if the second device has this mod too).

See video at my Instagram: https://www.instagram.com/p/B9qgHGFH_Eq/?igshid=ots3ksxukg3j



  🔋Rechargeable AAs mod: The device is modified so that player can charge the rechargeable AAs batteries (Nimh batteries) directly from the device via micro usb/Type C charging port built-in (at the top left of the GBA), please let me know in " Personalization box" which kind of port you would like (Micro usb or Type C port). Can use any phone charge which has 5v out to charge it. It works with both type A to type C and type C to type C charging cable

It still works with normal AAs batteries normally.

LED indicator:

High power: green

Low power: red

Charged: yellow, when full charged it is off.

Only charge when the batteries are inserted.



 🎧 Bluetooth mod: this mod lets you be able to get Bluetooth Audio working on your GBA in case you'd like to have your Bluetooth headphones/speaker work with your favorite handheld. This is how it works:



🌟 Slide the switch located at the bottom of the GBA to turn on the bluetooth function whenever you want to use your bluetooth headphones/speaker, it will search and pair automatically with the bluetooth speaker/earphone.

🌟 Turning on the Bluetooth function will disable the speaker, the sound of the game will be transferred to your bluetooth headphones/speaker. There is a small latency when transferring the sound to the Bluetooth device but it is barely noticeable.

🌟 You can use either GBA's volume wheel or your Bluetooth headphones/speaker to adjust the volume of the sound.

🌟 Sound that comes from bluetooth earphone/headphone is still stereo.

🌟 Connection is good if you keep the the distance between your GBA and your Bluetooth Headphones/Speaker less than 5 meters.

🌟 Make sure your bluetooth device disconnected before making new connection with the GBA. Sometimes you may need to turn on and off the bluetooth to pair successfully.

🌟 Battery life of the GBA when using Bluetooth function: around 7-8 hours with 3000 mAh AAs batteries (Brightness at level 5, IPS LCD).

🌟 You may hear small humming sound from your bluetooth headphones/speaker but it will be almost covered by the music of the game.

🌟 It is compatible with most of bluetooth devices in the market now (except Airpods Pro version, normal Airpods is still compatible), but I can not test every bluetooth device to say surely it will work with your bluetooth device, if you find out it can not pair with your bluetooth device after receiving the GBA, please try with another bluetooth device.



 📬 Processing time and Shipping:



     ✅️ Processing time: this is made to order, processing time depends on the current waiting list. It might take up to 8 weeks to finish the console. Contact us for the specific time before purchase.



     ✅️ Our store is located in Asia but we do have office in USA. For US customers, the console will be sent to our office in USA and our staff there will send the package to customer through USPS. And the shipping is FREE, frametime is 10-13 days after shipment (USPS tracking number will be available after around 7-9 days)

     🚀 Super fast shipping: 4-6 working days after shipment. Contact for checking shipping cost.



3️⃣ Other details of the product:

      🔸️Glass lens with no scratches and very pure.

      🔸️High quality conductive silicone were installed. The Dpad, AB buttons feel great and responsive (Most of normal conductive silicone in the market now make the Dpad,AB buttons really stiff).

      🔸️Shell is modified correctly which the shell close properly, two parts of the shell fit well.

 ⚠️ These upgrades need more power so we should use rechargeable AAs battery for better playtime. And the battery life depends on its brandname.



4️⃣ Tiny dust may fly to the backside of the lens while being shipped. This is out of my control.



5️⃣ No battery, no cartridge, no charger (if you choose rechargeable mod) include.

These are new Re-Production shell and buttons
